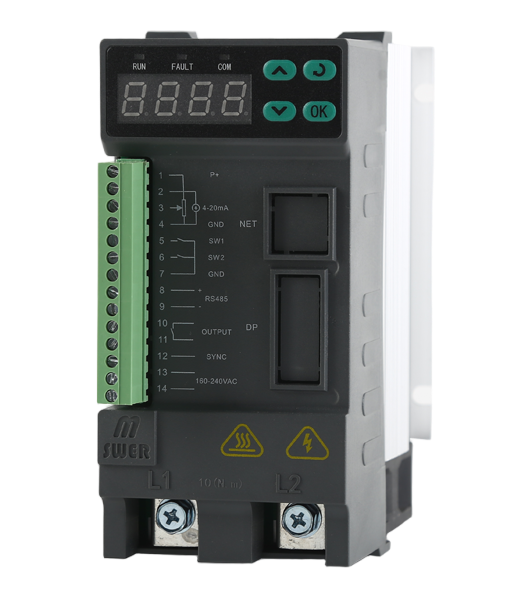

SR10TSR10T single-phase power regulator

Model

SR10T

Frequency

45HZ-65HZ

Cooling method

Self cooling, air-cooled

Main circuit voltage

φ1AC110-440V

Control voltage

AC100-240V

Optional specifications

25A，50A，75A，100A，120A，150A

Optional extension

Temperature control, TRMS true effective value, external display

13488970263 Inquiry Download

Main parameters

Specifications	025	050	075	100	120	150
Rated current	25A	50A	75A	100A	120A	150A
Power parameters	Main circuit: φ 1AC110-440V; Control board power supply: AC100-240V; Frequency: 45HZ-65HZ
Cooling method	Self cooling	Air cooling
Dimensions (MM) (length, width, height)	160mm80mm128mm
weight	1.2kg		1.2kg		1.2kg
Protection function	Phase loss, overcurrent (hardware overcurrent check), overheating, overload, load disconnection
Port	0-5V/0-10V/0-20mA/4-20mA analog input, 1-channel switch input MODBUS-RTU
Extension module	Temperature control, TRMS true effective value, external display
Trigger mode	Phase shift trigger, zero crossing trigger
Control mode	Constant voltage, constant current, constant power, open-loop
Load type	Programmable load control for current and voltage limiting
Accuracy	±1%
Static Stability	≤0.5%
Usage environment	-10-+50℃C,>45℃ Need to reduce the amount ；Altitude>1000 meters Need to downgrade according to GB/T3859.2-93
