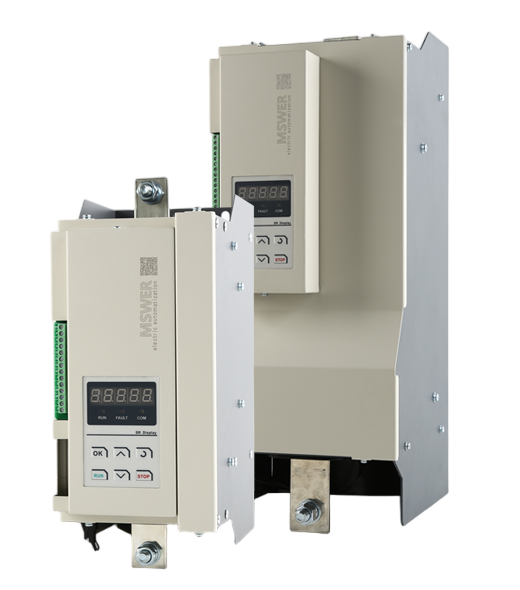

SR10ESR10E single-phase power regulator

Specifications

025

050

075

100

150

200

250

320

450

600

800

1000

1500

Rated current

25A

50A

75A

100A

150A

200A

250A

320A

450A

600A

800A

1000A

1500A

Power parameters

Main circuit: AC110-440V; Control power supply: AC198-242V; Frequency: 45HZ-65HZ

Cooling method

Self cooling

Air cooling

Dimensions (MM) (length, width, height)

255*106*158

295*135*207

480*200*225

Weight

3.7kg

3.7kg

3.8kg

3.8kg

3.9kg

5.5kg

5.5kg

5.5kg

10.2kg

10.8kg

12kg

-

Protection function

Protection functions such as phase loss, overcurrent, overheating, overload, load disconnection, frequency, etc

Port

0-5V/0-10V/0-20mA/4-20mA analog input, 2-channel switch input, 1-channel switch output MODBUS-RTU

Extension module

DA output, external feedback, display of external references, PROFIBUS-DP, PROFINET, MODBUS TCP/IP, TRMS true RMS

Trigger mode

Phase shift trigger, zero crossing trigger

Control mode

Constant voltage, constant current, constant power, open-loop

Load type

Customization of resistive, inductive, and programmable load characteristics

Accuracy

±0.5%

Static Stability

≤0.25%

Usage environment

-10-+50℃C,>45℃  Need to reduce the amount；Altitude>1000 meters  Need to downgrade according to GB/T3859.2-93
