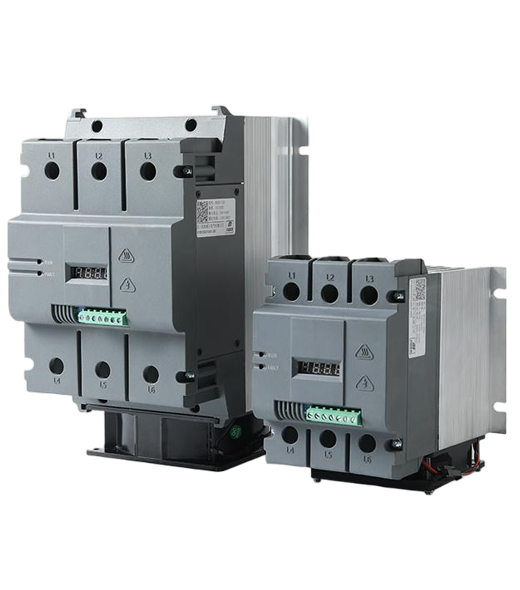

M300M300 three-phase power regulator

Specifications

050

075

100

120

150

Rated current

50A

75A

100A

120A

150A

Dimensions (MM) (length, width, height)

153*100*169mm

255*163*191mm(length, width, height)

Weight

1.5kg

1.6kg

3.3kg

4kg

4.1kg

Power parameters

Main circuit: 3AC260-440V; Control power supply: AC100-240V; Frequency: 45-65Hz

Cooling method

Air cooling

Protection function

Lack of phase, overheating

Port

0-10V/4-20mA模拟量输入，1路开关量输入

Extension module

/

Trigger mode

Phase shift trigger

Control mode

Open loop

Load type

Resistive and Sensory

Usage environment

-10~+50℃,>45℃  Need to reduce the amount；Altitude>1000 meters shall be downgraded according to GB/T3859.2-93
