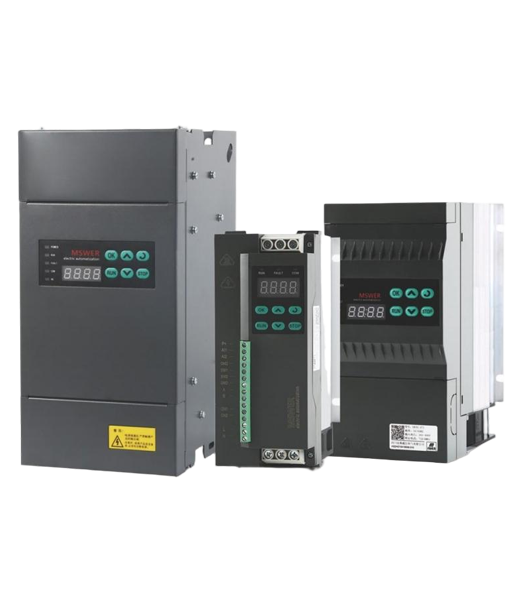

SR30LSR30L three-phase power regulator

Specifications

025

050

075

100

150

200

250

300

350

Rated current

025A

050A

075A

100A

150A

200A

250A

300A

350A

Dimensions (MM) (length, width, height)

186*80*125

251*136*179

335*164*209

360*194*228

Weight (KG)

1.3kg

1.3kg

3.3kg

3.3kg

7.9kg

10.4kg

12.6kg

12.6kg

18.4kg

Power parameters

Main circuit: 3AC260-440V; Control power supply: AC100-240V; Frequency: 45HZ-65HZ

Cooling method

Air cooling

Protection function

Phase loss, overcurrent, overheating, overload, load disconnection

Port

0-5V/0-10V/0-20mA/4-20mA analog input, 2-channel switch input, 1-channel switch output MODBUS-RTU

Extension module

Temperature function, external display

Trigger mode

Phase shift trigger, zero crossing trigger

Control mode

Constant voltage, constant current, constant power, open-loop

Load type

Customization of resistive, inductive, and programmable load characteristics

Accuracy

≤1%

Static Stability

≤0.5%

Usage environment

- 1 0 ~ + 5 0 ℃ , > 4 5 ℃ Need to reduce the amount ； Altitude greater than 10000 meters shall be downgraded according to GB/T 3 8 5 9.2-9 3
