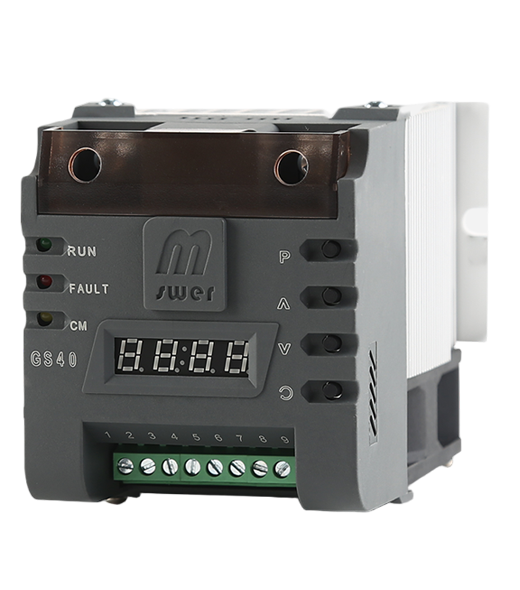

GS40GS40 single-phase power regulator

Model

GS40

Frequency

45HZ-65HZ

Cooling method

Air cooling

Main circuit voltage

AC110-440V

Control voltage

AC100-240V

Optional specifications

10A,25A,50A

Optional extension

Temperature function (expandable K, S, B, E, R, N, PT100 indexing sensors)/display external function

13488970263 Inquiry Download

Main parameters

Specifications	010	025	050
Rated current	10A	25A	50A
Power parameters	Main circuit：AC110-440V,Frequency：45HZ-65HZ;Power control：AC100-240V
Cooling method	Air cooling
Dimensions (MM) (length, width, height)	80mm80mm115mm
Net weight	0.5kg	0.5kg	0.5kg
Protection function	Phase loss, overcurrent, overheating, short circuit, load disconnection
Port	0-10V/4-20mA/0-20mA Analog input/thermocouple input
Extension module	Temperature function (expandable K, S, B, E, R, N, PT100 indexing sensors)/display external function
Trigger mode	Phase shift trigger, zero crossing trigger
Control mode	Constant voltage, constant current, constant power, open-loop
Load type	Resistance and sensitivity can be customized according to the special requirements for negative wear
accuracy	±1%
Static Stability	≤0.5%
Usage environment	-10-+50℃,>45℃ Need to reduce the amount ；Altitude>1000 meters need to be downgraded according to GB/T3859.2-93
